If you own an RV equipped with a Coleman Mach air conditioner like our travel trailer, you understand the importance of a well-functioning air conditioning system while on the road.
However, over time, certain parts may require replacement due to wear and tear or damage. Much to our dismay, the bearing on the fan motor is starting to make noises from being inactive.
To ensure you have the necessary information at your fingertips, I have compiled a Coleman Mach RV Air Conditioner parts list, and one that’s extremely comprehensive.
This user-friendly list includes part and model numbers, colors, and specifications for easy identification and procurement of the required parts.
Whether you need a blower motor assembly, capacitor, control board kit, or any other component like a bearing such as ourselves, this article will guide you in finding the right parts to maintain optimal performance for your RV air conditioning system.

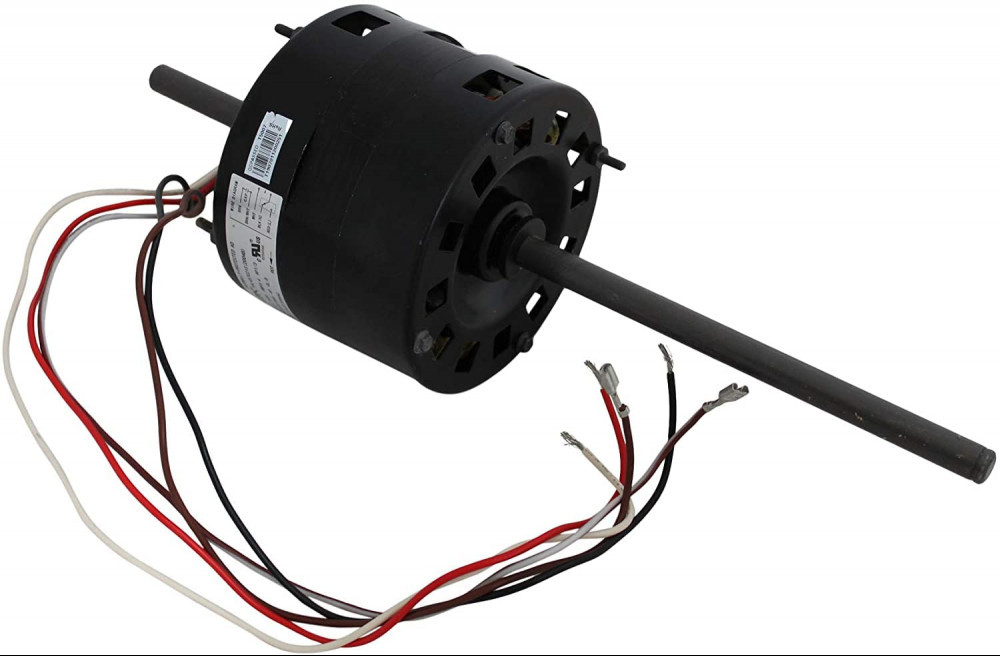

Blower Motor Assembly
The blower motor assembly is responsible for circulating cool air throughout your RV’s interior. If you notice reduced airflow or unusual noises, it may be time to replace this component. The following are the details for the blower motor assembly:
- Part Number: 1468A3109
- Color: Black
- Specifications: 1/3 HP, 115V, 1075 RPM

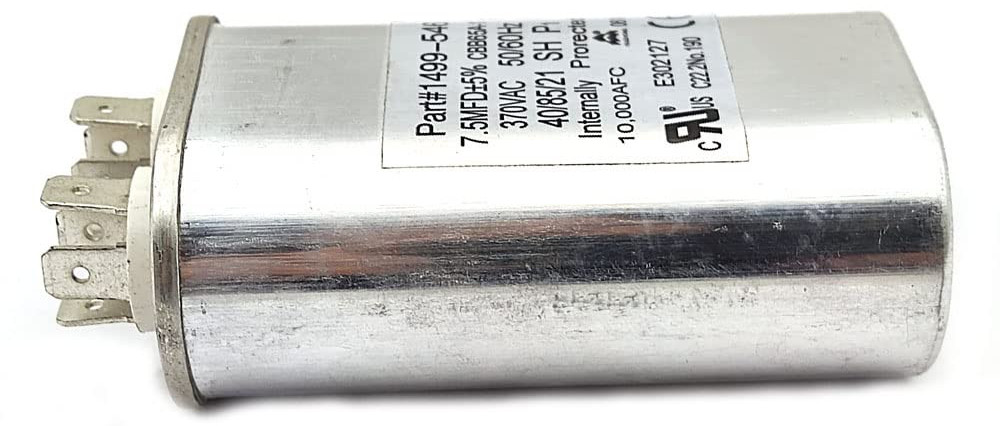

Capacitor
The capacitor plays a crucial role in starting the compressor and fan motor. If you experience difficulty starting your air conditioner or frequent tripping of breakers, the capacitor may need replacement. Here are the specifications for the capacitor:
- Part Number: 1499-5461
- Color: Silver
- Specifications: 30/5 MFD, 370V

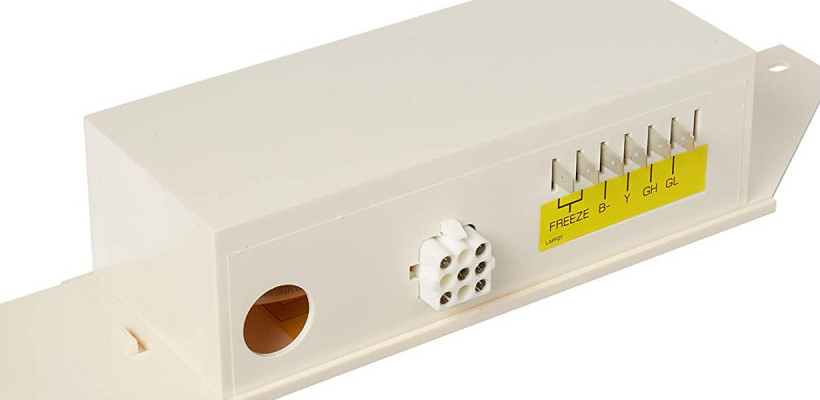

Control Board Kit
The control board kit, or otherwise known as the control box, is responsible for regulating various functions of your air conditioner. If you encounter issues with temperature control or settings, a faulty control board may be the culprit. The following details apply to the control board kit for non-heat pump models:
- Part Number: 8330-3851
- Color: White

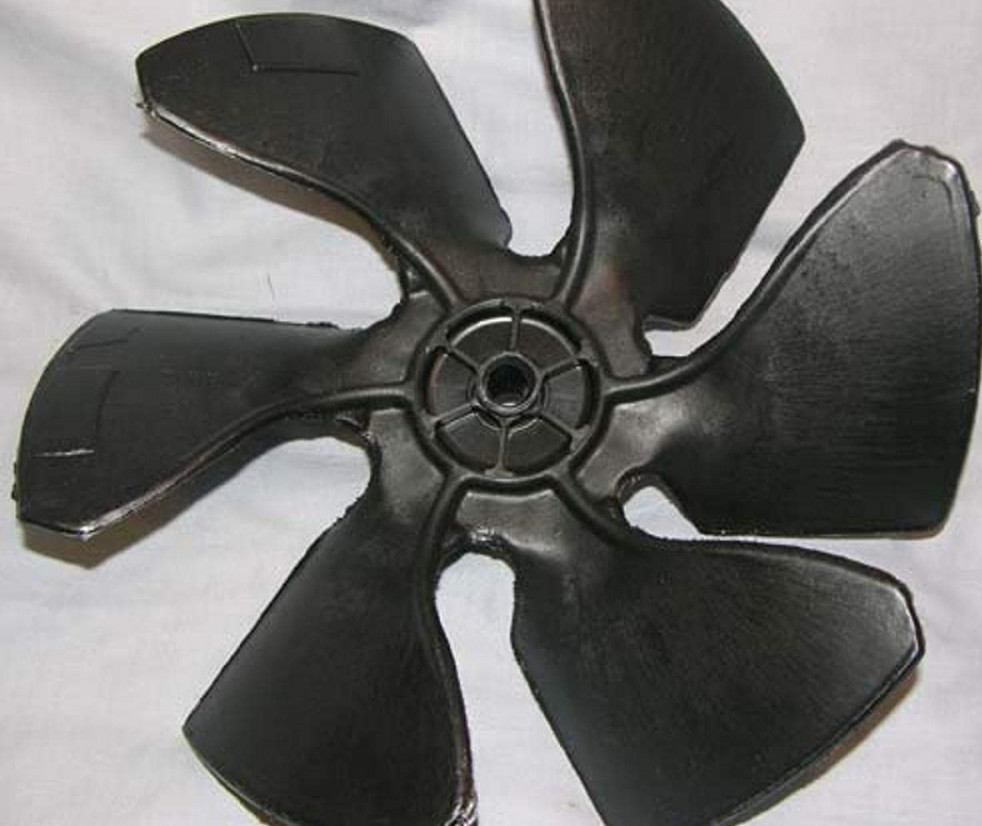

Fan Blade
The fan blade assists in pushing air through the condenser and evaporator coils, ensuring efficient cooling. A damaged or worn-out fan blade may result in inadequate airflow or noisy operation. Consider the specifications of the fan blade:
- Part Number: 6733-3221
- Color: Black
- Specifications: 6-blade, 12″x12″x6″, 1500RPM

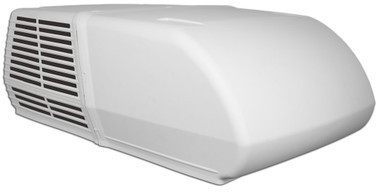

Shroud
The shroud serves as a protective covering for your air conditioner unit, shielding it from external elements. In case of a cracked or broken shroud, it’s advisable to replace it to prevent further damage. The shroud’s details are for the Coleman-Mach 7000, 8000, & 4800 series air conditioners, and are as follows:
- Part Number: 8335A5261
- Color: Polar White
- Specifications: Fits various models

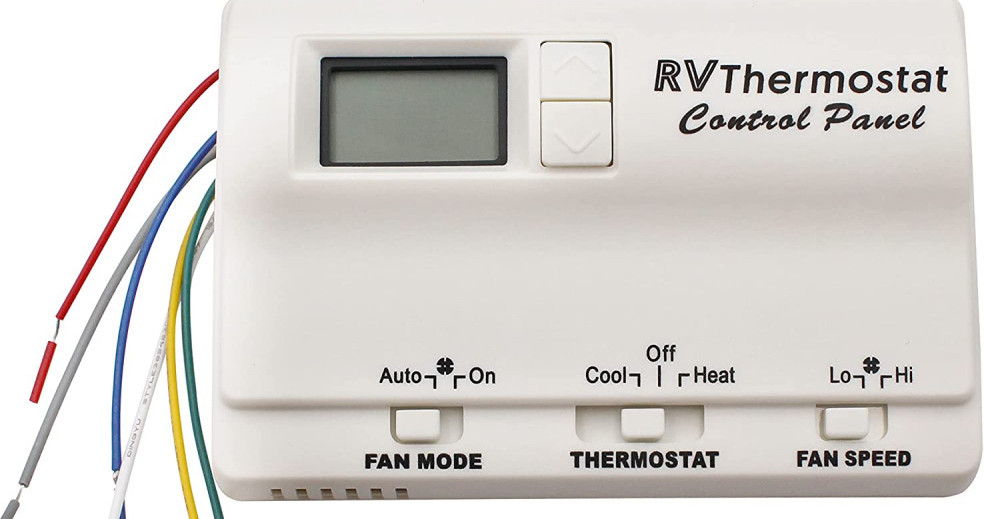

Thermostat
The thermostat enables you to control the temperature and settings of your air conditioner. If you experience inaccurate readings or unresponsive controls, replacing the thermostat may solve the issue. The thermostat details are as follows:
- Part Number: 8330-3362
- Color: White
- Specifications: Digital, non-programmable
Note: This is a replacement part number of what used to be 7330B3441. The other part number available for black in color is 8330-3862 which replaces 7330F3852.
Start Capacitor
Similar to the Capacitor above, essentially the start capacitor accomplishes the same role and assists in the initial startup of the compressor. If your air conditioner struggles to start or experiences frequent cycling on and off, a faulty start capacitor could be to blame. Consider the following specifications for the start capacitor:
- Part Number: 1499-5731
- Color: Silver
- Specifications: 88-106 MFD, 330V
Condenser Fan Motor
The condenser fan motor works in tandem with the fan blade to expel heat from the condenser coils. A malfunctioning motor can result in inefficient cooling performance. Much like the blower motor assembly, this product has the following details:
- Part Number: 1468A3069
- Color: Black
- Specifications: 1/6 HP, 115V, 1075 RPM

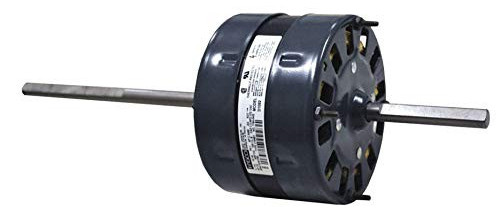

Note: The photo below is a replacement product from NBK Motors that replaces the Coleman-Mach motor specified above.
Selector Switch
The selector switch, or alternatively another wall mount thermostat, allows you to choose different operating modes or fan speeds for your air conditioner. If you encounter issues with the switch not functioning properly or not engaging the desired settings, it may be time for a replacement. Consider the following details for the selector switch:
- Part Number: 8330D3351
- Color: Black
- Specifications: 3-speed, for wall-mounted thermostat

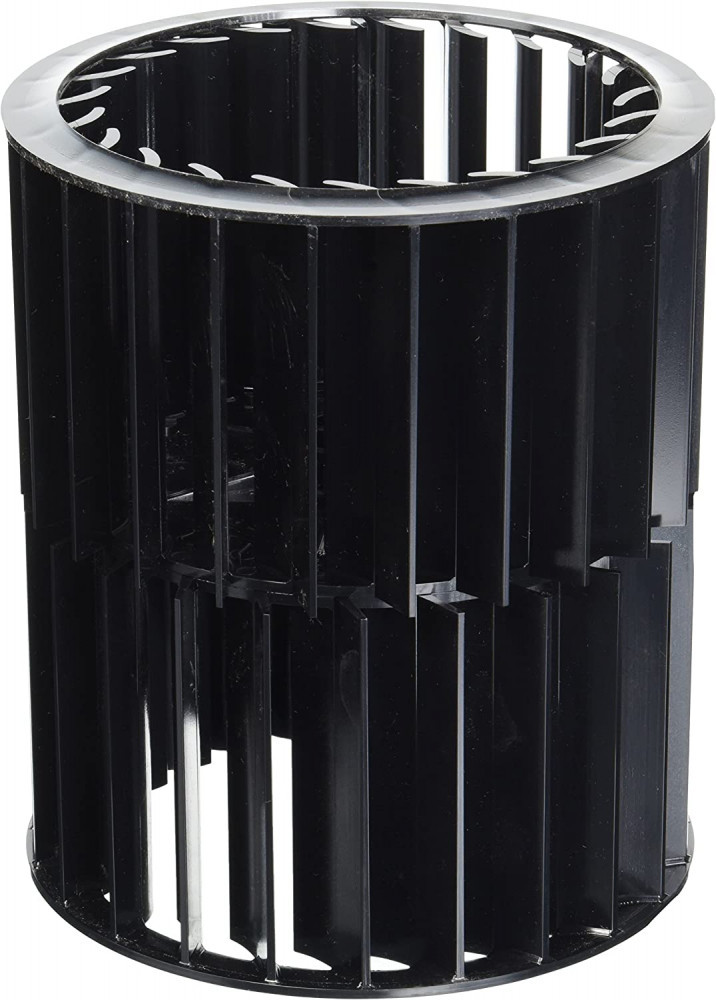

Blower Wheel
The blower wheel assists in moving air across the evaporator coil and into the RV interior. If you experience reduced airflow or noisy operation, a worn-out or damaged blower wheel might be the cause. The details for the blower wheel are as follows:
- Part Number: 1472-1191
- Color: Black
- Specifications: 9″ x 8″ x 8″

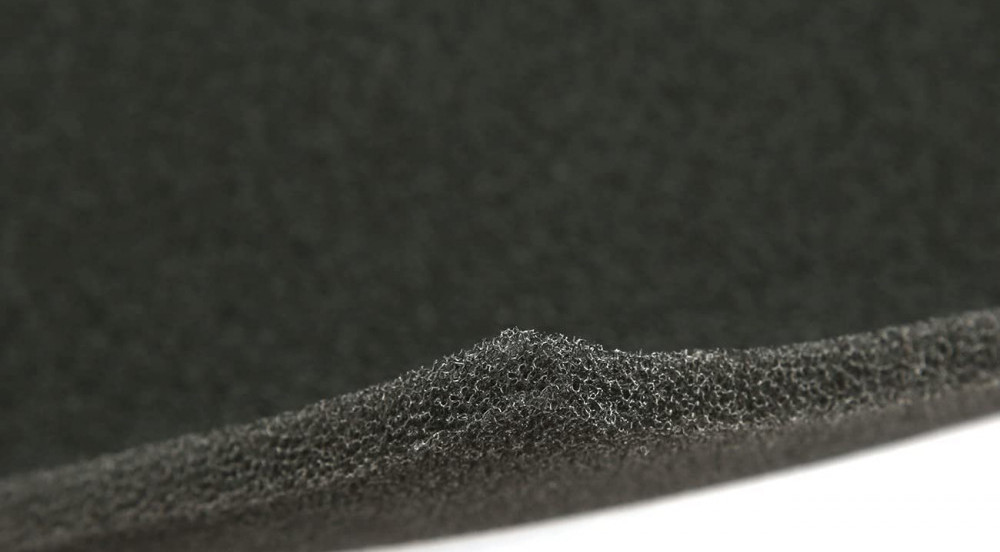

Filter Assembly
The filter assembly ensures that the air entering your RV is clean and free from dust and debris. Regularly replacing the filter assembly helps maintain optimal air quality and system performance. Consider the following details for the filter assembly:
- Part Number: 6798A3761
- Color: Grey
- Specifications: Includes foam filter replacement
Purchasing Your Parts
It’s important to note that availability of parts may vary depending on your specific Coleman Mach RV air conditioner model. To ensure you have access to the most up-to-date information and to find the exact parts you need, it is advisable to consult the manufacturer’s website or authorized dealers.
You can do so by clicking on the following link to Coleman-Mach’s website: Coleman Mach RV Air Conditioner Parts for Sale! (colemanmachac.com)
The official website provides detailed information about their products, including parts and accessories. You can browse their catalog, search for specific parts using the part numbers mentioned in this article, and make your purchase directly from their site.
When it comes to purchasing RV air conditioner parts other than from the manufacturer website, there are several options available. Many RV owners prefer the convenience of online shopping, and there are reputable online stores that specialize in RV parts and accessories.
You can search for these options from my article titled: Where is the Best Source for RV Parts and Accessories? – 1st Stop, Right Here, or check out our store page by clicking the SHOP NOW tab in the Menu bar! If we don’t have it, let us know so we can source it out!
Another popular option for purchasing RV air conditioner parts is through well-known online retailers such as Camping World, and etrailer. These platforms offer a wide selection of RV parts and accessories, including Coleman Mach air conditioner parts. Simply search for the specific part you need using the part number or product description, and you’ll likely find multiple options to choose from.
What happens if you don’t have a Coleman-Mach air conditioning unit in your RV? Well, other reputable name brands such as Furrion, can have your parts found through another well-known online retail store called Lippert. They have a variety of this manufacturers parts available at the click of a button.
Back to Coleman Mach however, when purchasing RV air conditioner parts, it’s important to ensure compatibility with your specific model. Carefully check the part numbers, specifications, and compatibility information provided by the manufacturer or retailer to make sure you’re selecting the correct parts for your air conditioner.
Conclusion
In conclusion, maintaining a properly functioning air conditioning system in your RV is essential for a comfortable and enjoyable travel experience. With the comprehensive parts list provided in this article, including part numbers, colors, and specifications, you have the necessary information to identify and procure the required parts for your Coleman Mach RV air conditioner.
For the best source of RV parts and accessories, online stores like the mentions above offer a wide range of options. Additionally, you can visit the official Coleman-Mach website (https://colemanmachac.com/coleman-mach-rv-air-conditioners/) or explore popular online retailers like Amazon, Camping World, Lippert and etrailer. By using these resources, you’ll be well-equipped to find and purchase the parts you need to keep your RV air conditioner in optimal working condition, ensuring a comfortable and enjoyable journey on the road.
Shop Camping World Products on Sale Now!
Now, go sip on a cold one in your working AC inside your travel trailer and enjoy the rest of the day!
If you have a comment you’d like to make or suggest other parts I may have excluded, feel free to add it in the box below and I’ll ensure I respond.
Cheers!
